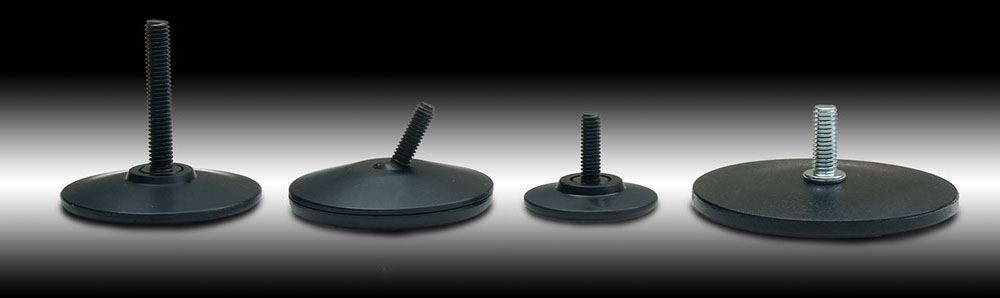

Low Profile Adjustable Glides
Low profile adjustable glides from Carpin provide a very economical and aesthetically appealing floor leveling solution for many different furniture applications, including desks, tables, filing cabinets, racks, workbenches, non-movable chairs, and more.
Carpin offers low profile adjustable glides that are made from ABS plastic, containing no hole in the bottom of the glide, which allows it to slide more easily across flooring surfaces, especially carpet. Low profile glides that swivel are available with a 2″ or 3″ diameter base, containing a 1″ threaded metal stem with a 5/15-18 thread size.
Our non-swivel low profile adjustable glides come in 2″, 3″ and 4″ base diameter and three standard thread sizes (5/16-18, 3/8-16, and MIO), with stem lengths of 1/2” to 3-1/2″ (hex).
The plastic base is constructed from sturdy black nylon and the threaded stems are constructed from heavy duty steel with a choice of zinc or black oxide finish.
Shown below are some common configurations:
Swivel Low Profile Adjustable Glides
click to view larger image
| Product | Threaded Stem | Base Diameter (A) |
||
|---|---|---|---|---|
| Thread Size (T) |
Thread Length (L) |
Stem Finish |
||
| Non-Swivel Low Profile Adjustable Glide with 2" Base, 5/16-18 x 1" stem | 5/16-18 | 1" | Black Oxide | 2" |
| Non-Swivel Low Profile Adjustable Glide with 3" Base, 5/16-18 x 1" stem | 5/16-18 | 1" | 3" | |
Non-Swivel Low Profile Adjustable Glides
click to view larger image
| Product | Threaded Stem | Base | |||
|---|---|---|---|---|---|
| Thread Size (T) | Thread Length (L) | Stem Finish | Diameter (A) | Color / Material | |
| Non-Swivel Low Profile Adjustable Glide, 5/16-18 x 3/4" stem | 5/16-18 | 3/4" | Zinc | Black | |
| Non-Swivel Low Profile Adjustable Glide, 5/16-18 x 1" stem | 5/16-18 | 1" | or | Nylon | |
| Non-Swivel Low Profile Adjustable Glide, 5/16-18 x 1-1/2" stem | 5/16-18 | 1-1/2" | Black | ||
| Non-Swivel Low Profile Adjustable Glide, 5/16-18 x 2" stem, w/hex | 5/16-18 | 2" (hex) | Oxide | ||
| Non-Swivel Low Profile Adjustable Glide, 5/16-18 x 2-1/2" stem, w/hex | 5/16-18 | 2-1/2" (hex) | |||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 1/2" stem | 3/8-16 | 1/2" | 2" | ||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 3/4" stem | 3/8-16 | 3/4" | |||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 1" stem | 3/8-16 | 1" | |||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 1-1/2" stem | 3/8-16 | 1-1/2" | |||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 1-1/2" stem, w/hex | 3/8-16 | 1-1/2" (hex) | 3" | ||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 2" stem, w/hex | 3/8-16 | 2" (hex) | |||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 2-1/2" stem, w/hex | 3/8-16 | 2-1/2" (hex) | |||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 3-1/2" stem, w/hex | 3/8-16 | 3-1/2" (hex) | |||
| Non-Swivel Low Profile Adjustable Glide, 1/2-13 x 2" stem, w/hex | 1/2-13 | 2" (hex) | 4" | ||
| Non-Swivel Low Profile Adjustable Glide, 3/8-16 x 3-1/2" stem, w/hex | 3/8-16 | 3-1/2" (hex) | |||
| Non-Swivel Low Profile Adjustable Glide, M10 x 1" stem | M10 | 1" | |||
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
